Safety, Protection & Compliance

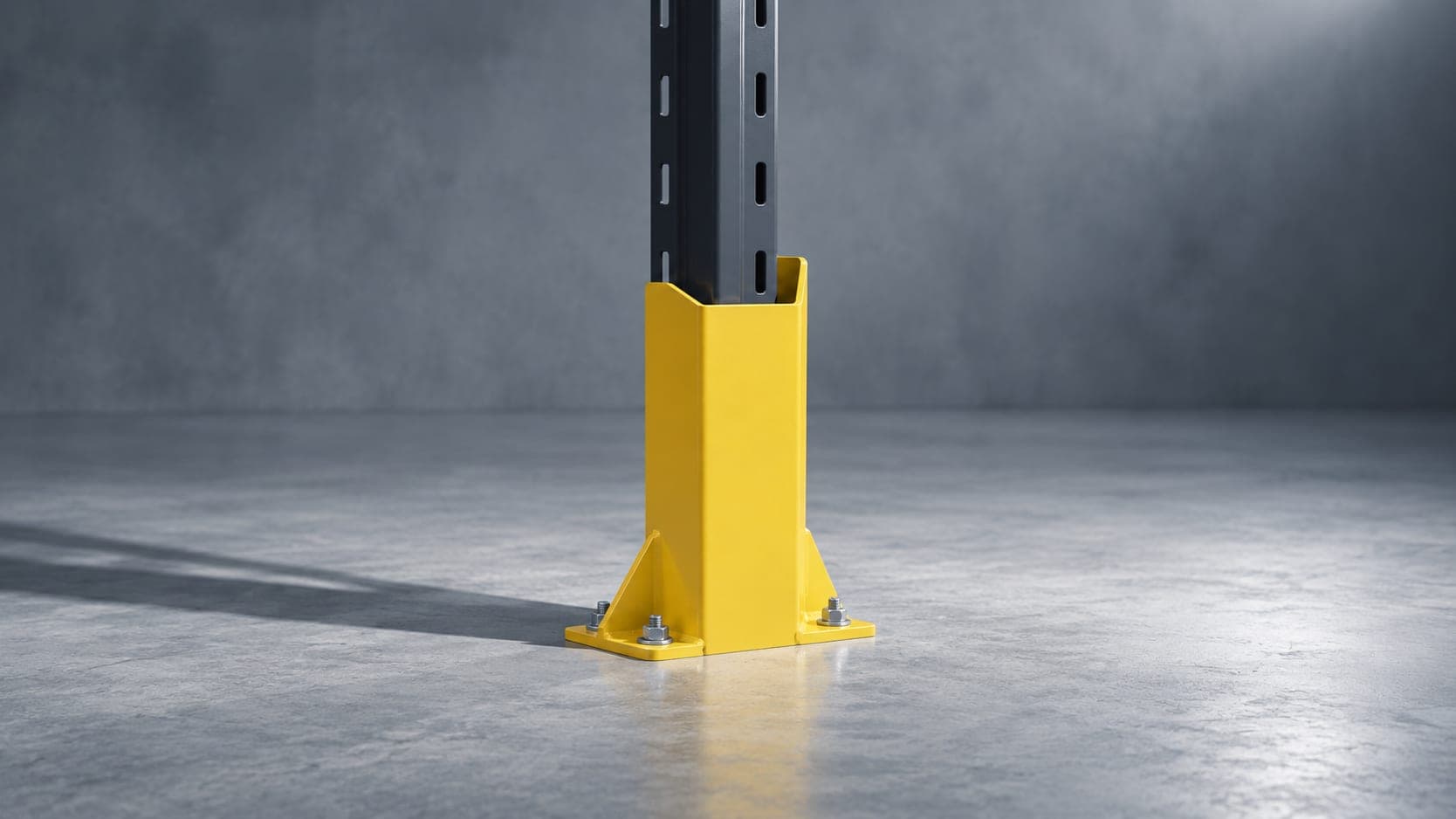

Also called: rack guard, post protector

400–1,200 mm high · steel or polymer · bolted or clip-on

Fitted to every aisle-facing upright at minimum. Polymer types deform and recover; steel ones transfer the impact to the floor fixing.

Also called: rack load sign, safe working load plate

Per run · states bay and level loads

A legal requirement in most jurisdictions and a practical one everywhere: nobody can respect a limit they cannot read.

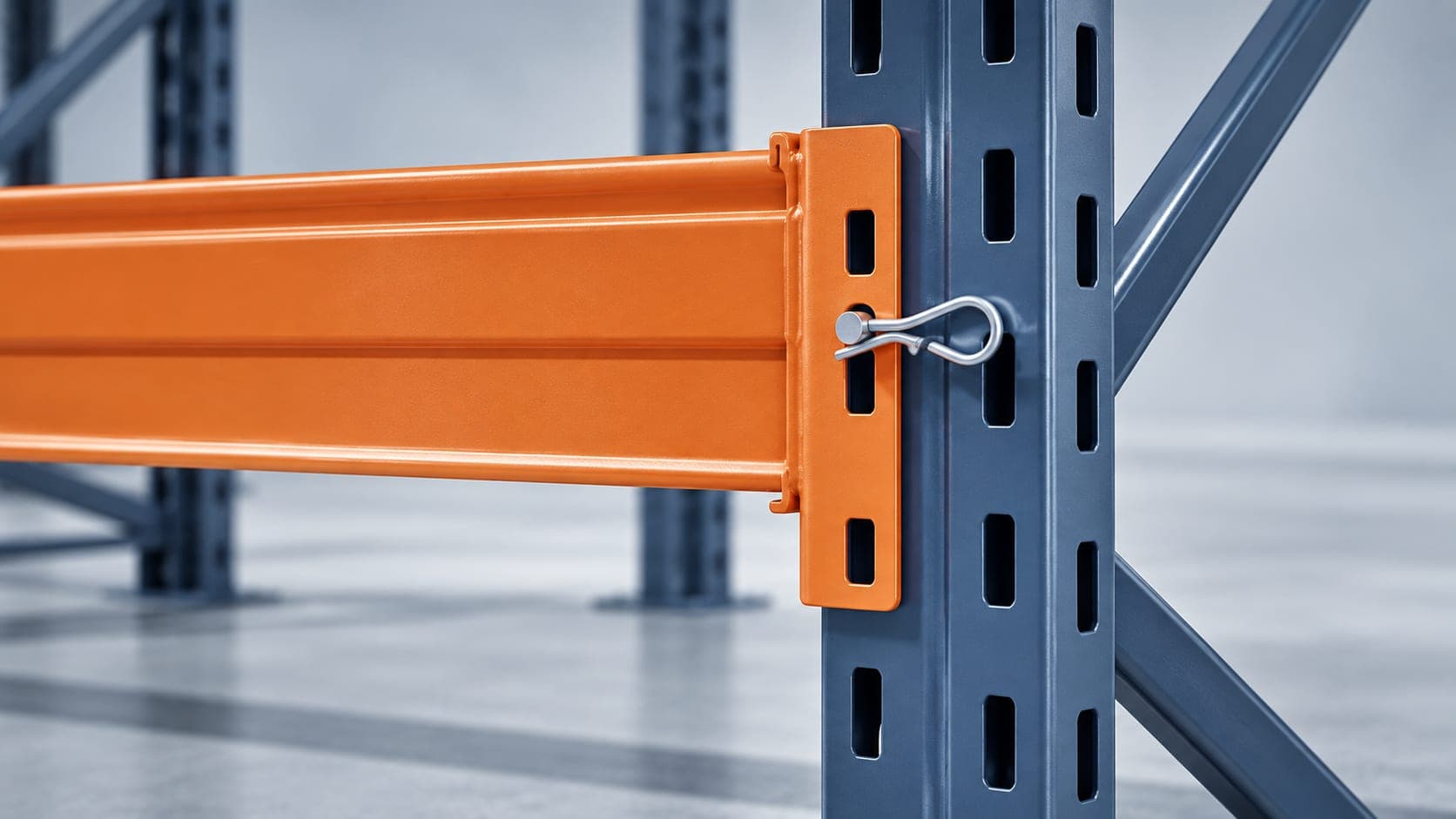

Positive locking clip per beam end

Prevents a beam lifting out when a fork catches it underneath. Missing pins are the single most common finding in a rack audit.

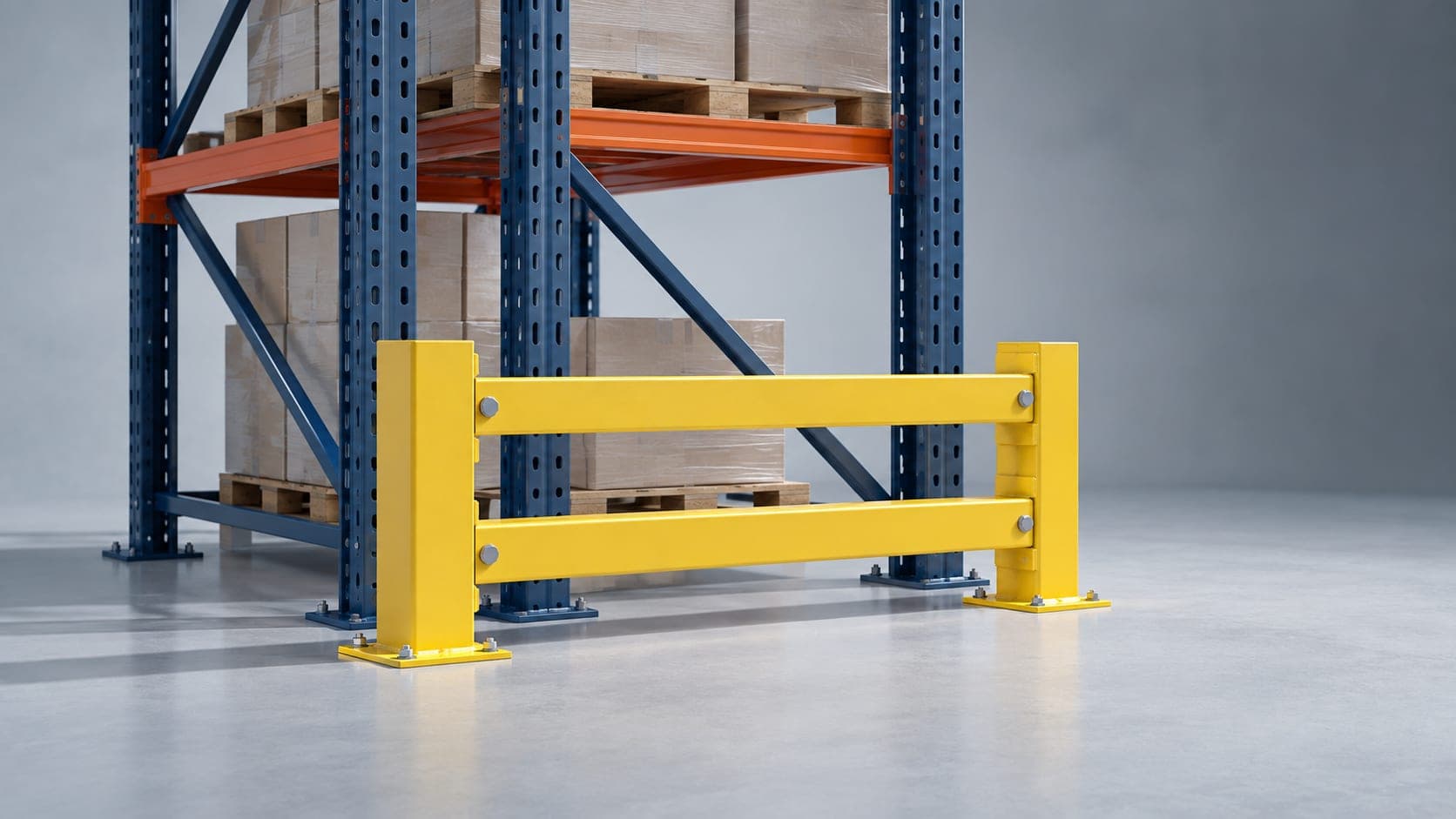

Also called: rack end protector, end frame barrier

Free-standing, floor-fixed steel

The end frame is where a truck turns in and where the worst impacts happen. A separate barrier keeps that impact off the rack entirely.

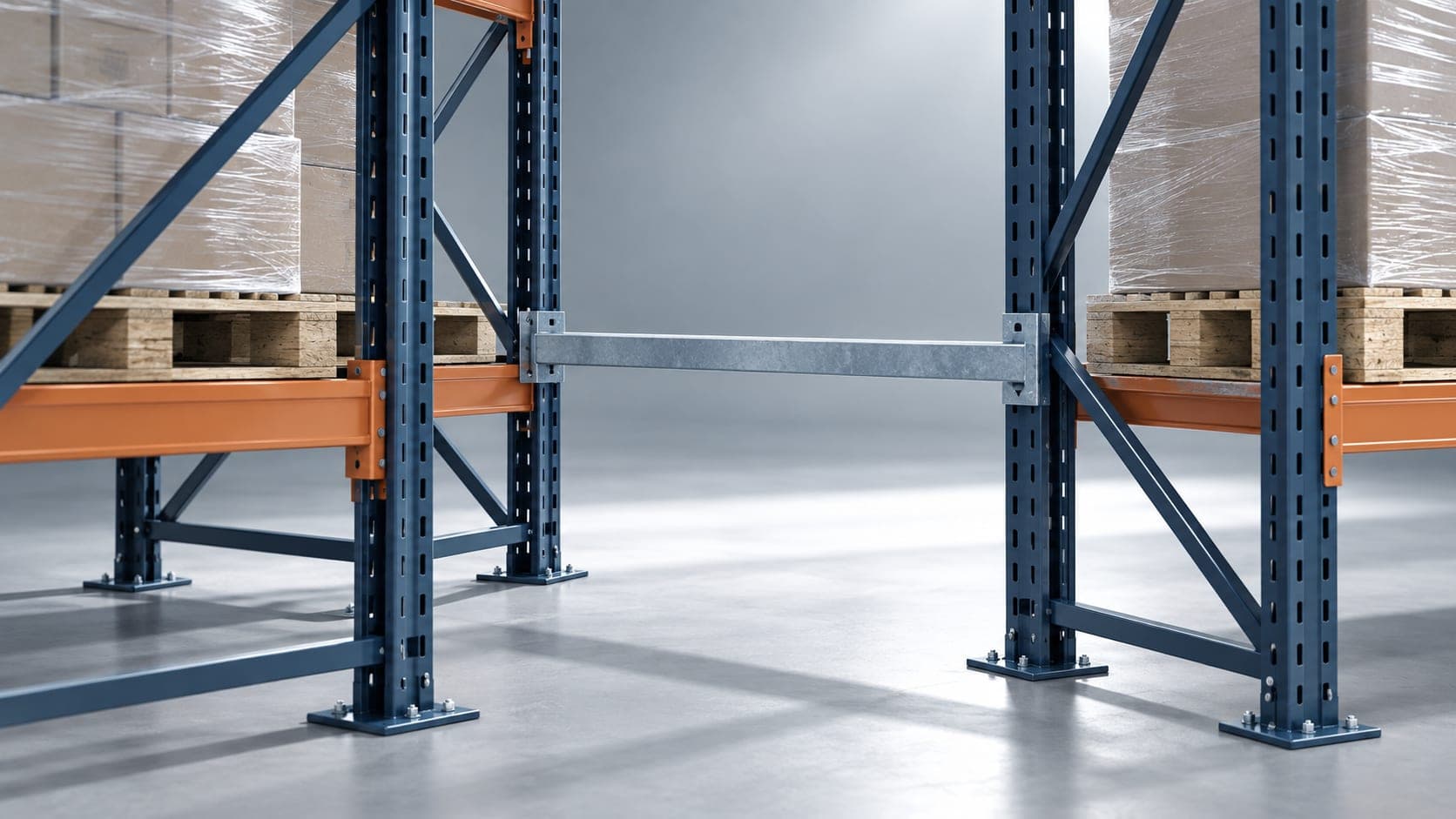

Also called: row spacer stop, back-to-back stop

Rear beam stop in back-to-back runs

Stops a pallet being pushed into the aisle behind — an unseen fall from height onto whoever is working there.

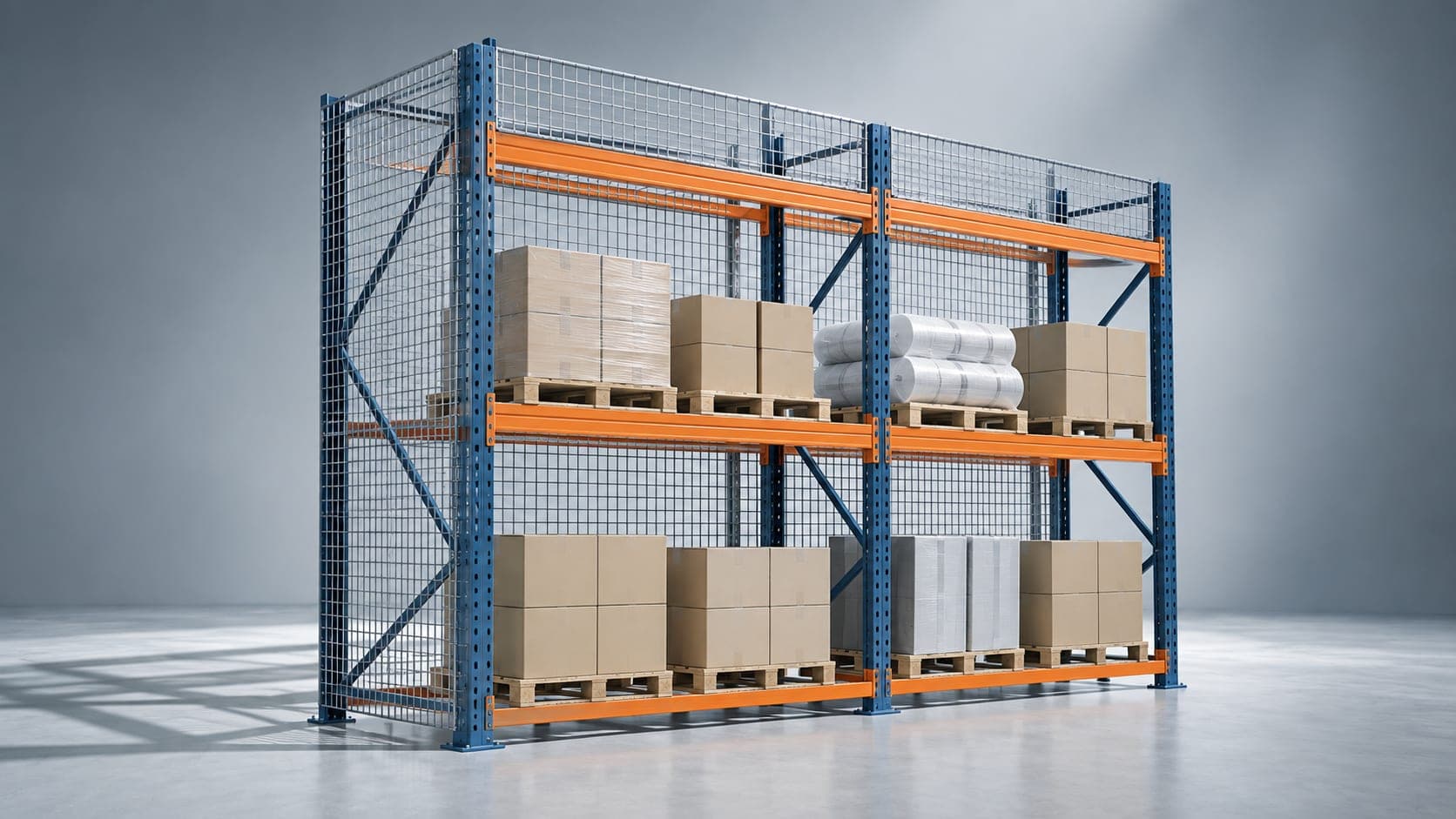

Also called: rack back mesh, mesh cladding

Mesh panels to rear and side faces

Required wherever a walkway, pick face or public area runs behind or beside racking.

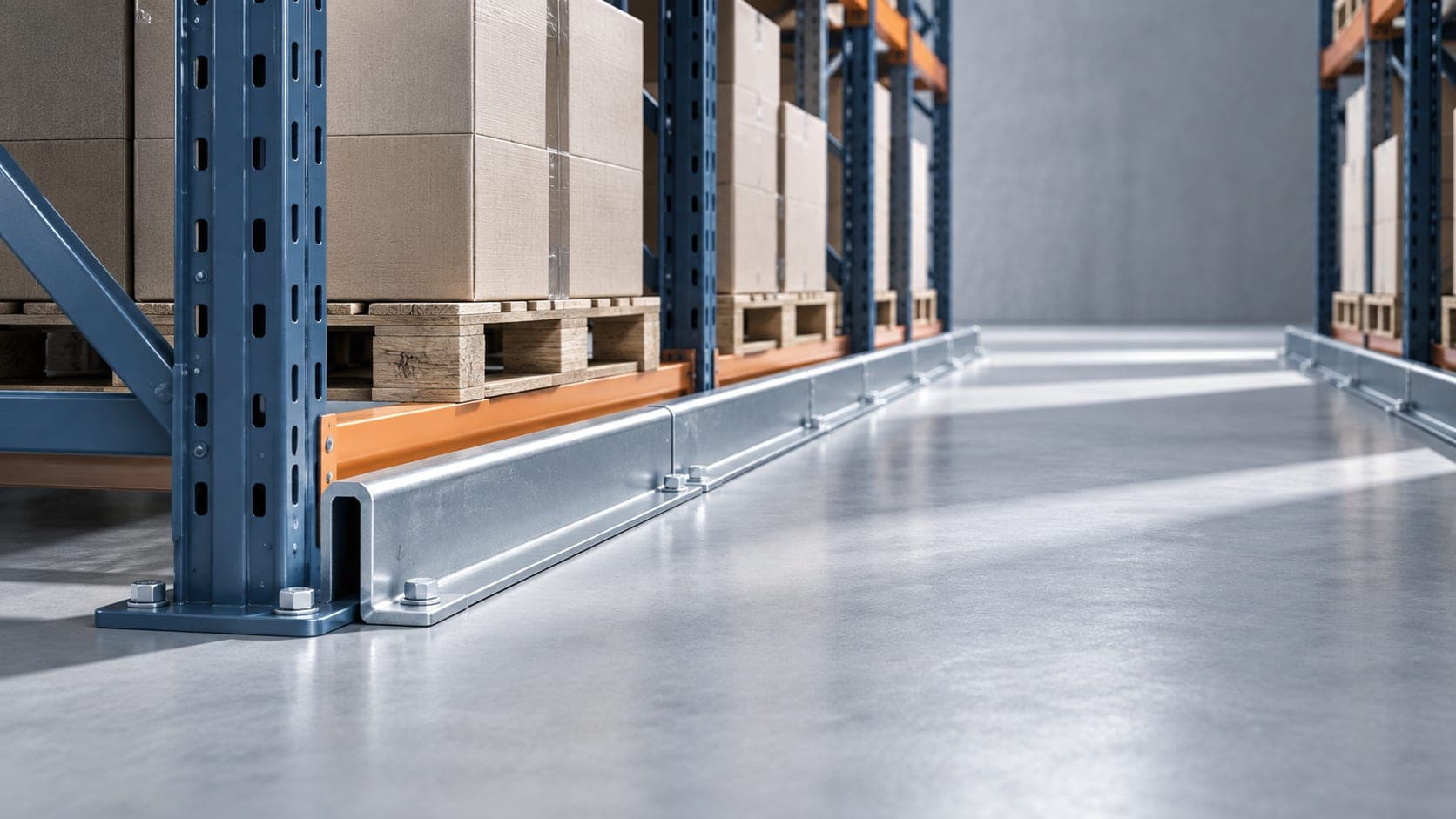

Also called: aisle guide rail, floor guide

Continuous floor-fixed rail

Steers the truck down the aisle. Mandatory in VNA, and useful anywhere aisles are tight.

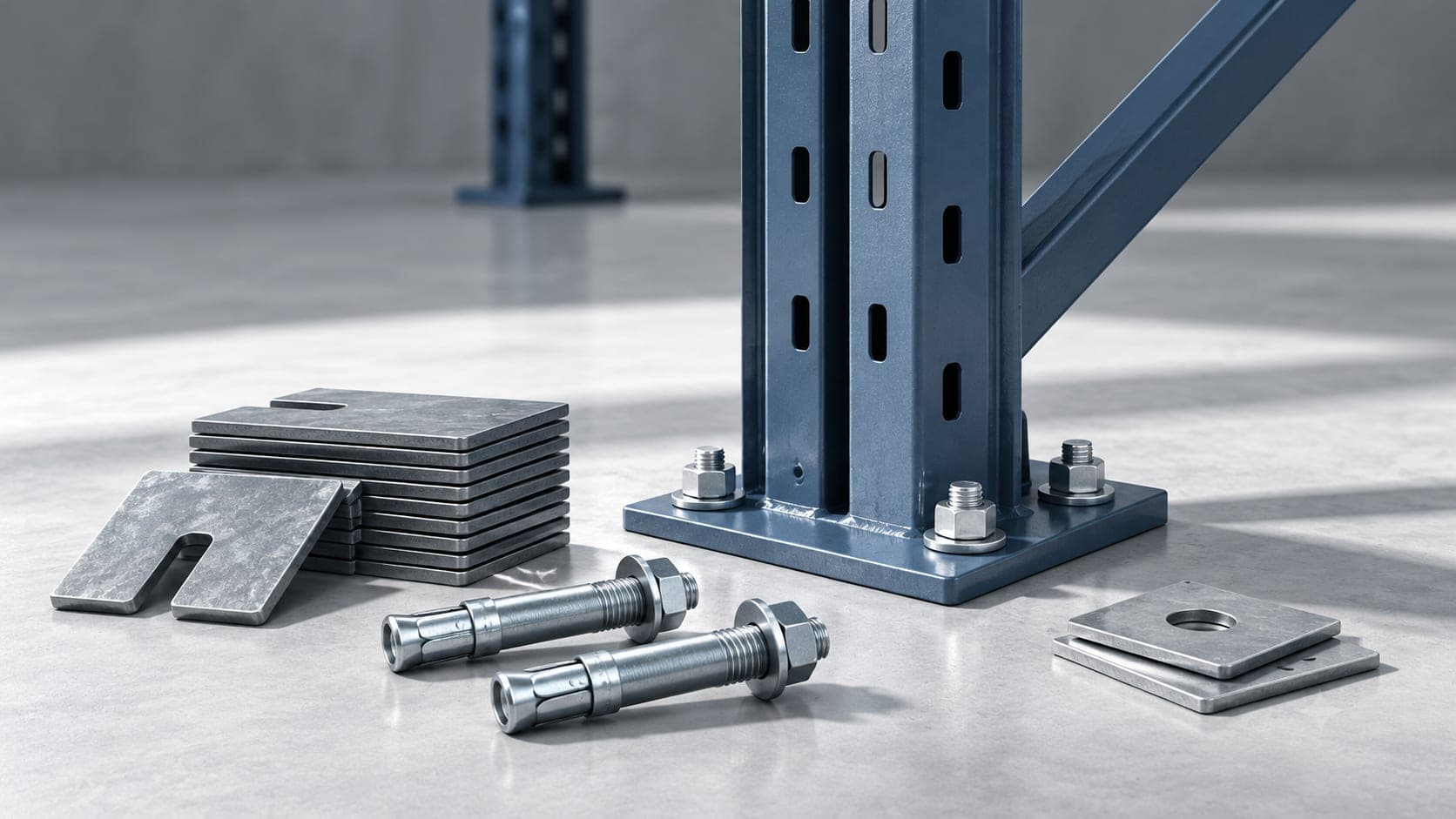

Levelling shims, base plates, expansion anchors

An out-of-plumb frame loses capacity fast. Shimming and anchoring is installation quality, not an accessory.

PVC tape, epoxy paint or thermoplastic

Aisles, walkways, staging, quarantine and no-go zones. Thermoplastic survives forklift traffic; tape does not.

Hanging aisle signs, rack end boards, zone signs

Wayfinding and the WMS address scheme made physical.

Mandatory, warning, prohibition and information

Pictogram-led so it works across the languages actually spoken on the floor.

Adhesive shapes and pallet footprints

Defines staging positions precisely enough that people use them.

Workstation mats, wet-area matting

Standing stations and any surface that gets wet.

Oil, chemical and general kits · bunds and drip trays

Placed at the risk, not in a store cupboard. Response time is the whole point.

Cabinet, kit and register

Stocked, signed and checked against a register.

Plumbed or portable

Wherever chemicals are decanted or stored in bulk.

Also called: LOTO

Padlocks, hasps, tags and stations

Maintenance on conveyors, balers and powered equipment.

With chin strap where working at height

Mandatory under racking work and in any area with overhead handling.

Steel or composite toe · anti-slip · anti-static options

The most-used PPE in a warehouse and the item most often bought too cheap.

Vest, jacket or coverall · retro-reflective

Non-negotiable wherever trucks and pedestrians share space.

Cut, impact, chemical and cold-store grades

Cut level matched to the material handled — strapping and sheet metal need more than a general glove.

Goggles, spectacles, face shields

Strapping, cutting, decanting and cleaning operations.

Plugs and ear defenders

Around compressors, balers and processing plant.

Dust masks to full-face respirators

Dust, fume and chemical decanting.

Full-body harness with rated anchor points

Any work on a mezzanine edge, a man-up cage or a roof. The anchor point matters as much as the harness.

Freezer suits, gloves and boots

Rotation limits matter as much as clothing in a −25 °C store.

Steel or polymer · single or double rail

Segregates walkways, protects plant, defines pedestrian routes.

Fixed, removable or collapsible

Point protection at corners, doors, columns and equipment.

Wrap-around polymer or steel

Building columns take as many hits as racking and are considerably more expensive to repair.

Continuous with defined crossings

Crossings should be few and deliberate. Many crossings mean the route is wrong.

Corner, aisle and dome types

Blind aisle intersections and corners.

Modular rubber sections

Yard and internal roadway speed control.

Mesh panel with interlocked gates

Around automation and moving plant.

Also called: forklift proximity alert, blue spot light

Projected light or RF proximity

Warns pedestrians of an approaching truck before it appears around the rack.

Also called: rack audit, PRRS-style inspection

Full survey with green / amber / red damage classification

Red means unload now. Amber means repair within a stated window. Green means monitor. The classification is what makes the report actionable.

Trained internal inspector · logged

Between annual inspections. Someone on the floor must own it by name.

Upright, beam, brace and footplate replacement

Damaged components are replaced, never straightened — cold-worked steel does not return to its rated capacity.

Physical or calculated verification

For mezzanines, platforms and any modified racking.

Recalculation after a layout change

Changing beam pitch changes the upright's rated capacity. The old load notice is then wrong and dangerously so.

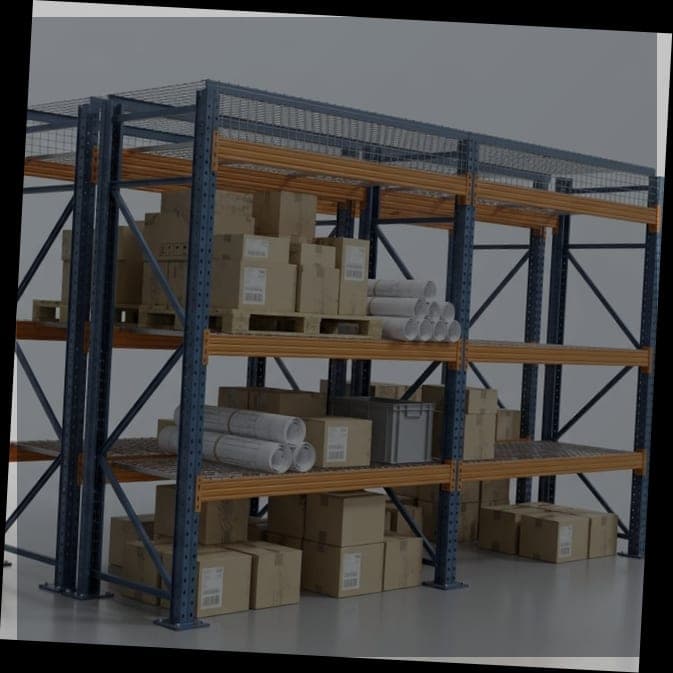

Rack awareness, damage spotting, safe loading

The people who cause the damage are the people best placed to report it.

At intermediate levels within the racking

Required above certain heights and commodity classes. Solid decking blocks it, which is why mesh is specified.

Also called: ESFR, wet or dry riser system

ESFR or conventional

ESFR can sometimes avoid in-rack heads entirely, but only within stated storage height and commodity limits.

Transverse and longitudinal flues held open

A design parameter, not an accessory. Blocking flues with over-wide pallets defeats the sprinkler design.

ABC, CO₂, foam and water types

Type matched to the risk. Mounted, signed and inspected.

Internal and external

Statutory in most warehouse occupancies over a threshold area.

Point, beam or aspirating

Beam detectors suit high-bay sheds where point detectors are unreachable and slow to respond.

Addressable · zoned

Zoning should match the aisle plan so an evacuation instruction means something specific.

Maintained · battery-backed

Egress routes stay legible when the power does not.

Rated assemblies

Compartmentation between storage zones.
